Monday, February 28, 2011

50,000 Hits!

Wow.


It's a small world.


Friday, February 25, 2011

Liberty Sump Pump 257: 1/3 hp 115V 5.2 amps 60Hz 50 GPM

A nice Craig's List find and a critical piece for my fishyard transfer system:
Liberty Sump Pump 257: 1/3 hp 115V 5.2 amps 60Hz,
50 GPM @ 0 and 40 GPM@ 8 Feet.
American Made!
Here's a video the seller posted.  Can't wait to drain a 300 gallon tank and relocate the water in 6 or 7 minutes!
He shipped it from a few hours drive away for $13.

Hardly any run time.  Can't wait to draina 300 gallon tank and relocate the water in 6 or 7 minutes!

Liberty Sump Pump 257: A nice Craig's List find.  He shipped it from a few hours away for $13.


Libery Pumps Model 257 Submersible Sump Pump w/ VMF Switch

Libery Pumps Model 257 Features:
  • Rugged 1/3 hp motor, oil filled with thermal overload protection.
  • 1/2" solids handling.
  • 1-1/2" discharge.
  • Hermetically sealed motor and switch cavities, and permanently lubricated bearings.
  • Liberty’s UNI-BODY casting – a solid, one piece housing that eliminates the lower motor seal ring found on other pumps.
  • Epoxy powder coat finish
  • Vortex style impeller for superior solids-handling. Made of high temperature engineering polymer.
  • Carbon and ceramic shaft seal.
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor. (25' length optional) For 25' cord option, add a “-2” suffix to model number. Example: 257-2 for Model 257 with 25' cord.
  • VMF switch, (Vertical Magnetic Float) for smaller pits down to 10" diameter.
  • Fasteners – all non-corrosive stainless steel.
  • 416 stainless steel rotor shaft.
  • 2 YEAR LIMITED WARRANTY
Libery Pumps Model 257 Motor Specifications:
  • 1/3 hp 115V 5.2 amps 60Hz
  • Thermally Protected & Permanently Lubricated
  • Maximum Fluid Temperature: 140°F
Libery Pumps Model 257 Dimensional Data:
  • Weight ----- Model 257: 22 lbs.
  • Height ----- 10.5"
  • Major Width ----- 9.6" (manual model 250)


Eheim everyday feeders

Just got 8 more for $95 delivered! And no my source doesn't
have anymore and when he does I'm buying them too.

They now have a mounting bracket. My previous one didn't
have this or were missing on my after market purchases.

Fits my plywood Ranchu tubs just barely.

Thursday, February 24, 2011

Guide to Using Drugs, Biologics, and Other Chemicals in Aquaculture

The American Fisheries Society - Fish Culture Section's Working Group on Aquaculture Drugs, Chemicals, and Biologics (WGADCB) is proud to announce its publication of the Guide to Using Drugs, Biologics and Other Chemicals in Aquaculture and a companion tool to assist in the calculation of the amount of drug, biologic or chemical to be used for your specific aquatic animal treatment needs.The Guide is being published exclusively in electronic form to facilitate efficient and timely updates in our ever-changing regulatory climate.
The Guide is provided as an Adobe PDF file, requiring you to have Adobe Reader installed on your computer. Click here to install the latest version of the free Adobe Reader.
The Treatment Calculator is offered as a Microsoft Excel file. Your computer must have installed either Microsoft Excel or any other program that will read and execute calculations of an Excel file.
Note: At this time the available version of the Treatment Calculator can only be read by Excel 2007 or newer. An Excel 97-2003 compatible version is not currently available, but is being developed.
Click on the following links to download the:å
or




Wednesday, February 23, 2011

Drop your dream pin in the map

Saw this place in an aquaculture trade journal. 162 acre goldfish farm in the central valley of California. $3,000,000 a year sales when operational. You know what they say... How do you make a small fortune in aquaculture? Start with a large one.

Tuesday, February 22, 2011

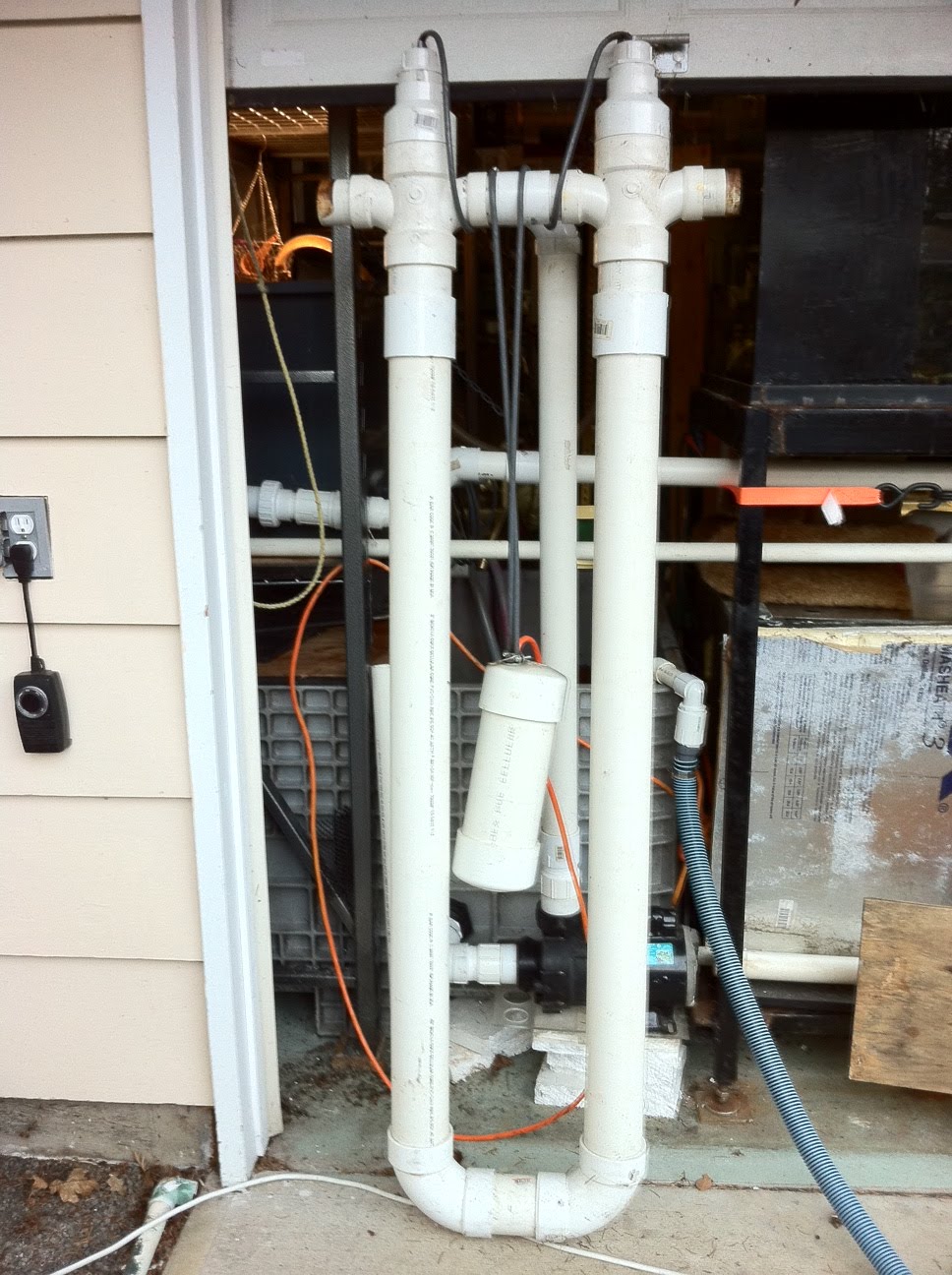

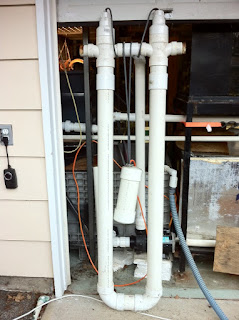

DIY UV Servicing

Time to change the bulbs and clean the sleeves. This is a 130 watt (2x 65 watt) I made out of PVC parts. It runs the main central goldfish system.

Sunday, February 20, 2011

Thin Film Surface Skimming Adjustable Standpipe

The Thin Film Surface Skimming Adjustable Standpipe has a one inch standpipe core and a two inch exterior that can slide up and down on the core to make fine adjustments. It is made with a 2 x 1 inch bushings with the stop ground out so it can slide up and down on the one inch standpipe for fine tuning. The bushing is inserted into a two inch coupling. The other end of the coupling has a 4 inch length of 2 inch pipe which becomes the top of the surface skimmer. To prevent fish from going over the standpipe a one inch bulkhead intake screen is inserted into a one inch couple or cap, inverted and inserted into the schedule 200 one inch stand pipe. This creates a 1/8 to 1/4 inch continuous gap between the one inch coupling and two inch pipe. This provides great thin film skimming.

YouTube Video

Surface skimming is the most effective and simple way to remove the oily film of proteins and oils that build up on the water surface of heavily fed tanks. A clean surface is where your gas exchange takes place. A surface film significantly reduces gas exchange am carrying capacity of a tank.

Aeration is a great way to push the film back and break it up. This method leaves the fat and protein in the tank or splashed at the water line. Surface skimming removes it from the tank completely to be filtered.

For surface skimming to be effective you need thin film of water going over the standpipe. To handle the flow you need the surface area of a larger diameter pipe. A one inch stand pipe can handle the flow rate of this tank but skimming is in effective due to the small cross section of the pipe. With a two inch outer pipe acting as the weir the amount o linear surface area for skimming doubles.

Another key issue for surface skimming to work effectively is the water must drop over the first edge of the skimmer a sufficient
distance so skimmed film doesn't backup on the surface tension stopping the skimming.

Saturday, February 19, 2011

Thursday, February 17, 2011

Tuesday, February 15, 2011

Itoh (Hater) 11/10 TVR BBR

The America Ranchu Society seal is 5 cm.  Video taken before first feeding of the day.

Deep water spawning rig

Film Canister float, top mops





Midwater mop


Fry Grass with ceramic fence insulator weight




Friday, February 11, 2011

Master Piece!

I received an amazing package of TVR goldfish today. They are a little different than the usual fish shipment. These were a gift from Jeff Thompson (Glassgoldfish) http://www.thompsonstudioglass.com.  It has University of Oregon yellow and green eyes.
http://www.thompsonstudioglass.com
http://www.thompsonstudioglass.com

The only other person I know of with one of these is Mr. Oishi, which in and itself is an honor.
Top View



Side View
What a mug.
Ventral view.
The mark of the artist: Thompson '11.

The Official American Ranchu Society medallion.
Thanks to Kendal for his wonderful seal of the society.  He also designed the wonderful masthead at the top of this blog.
